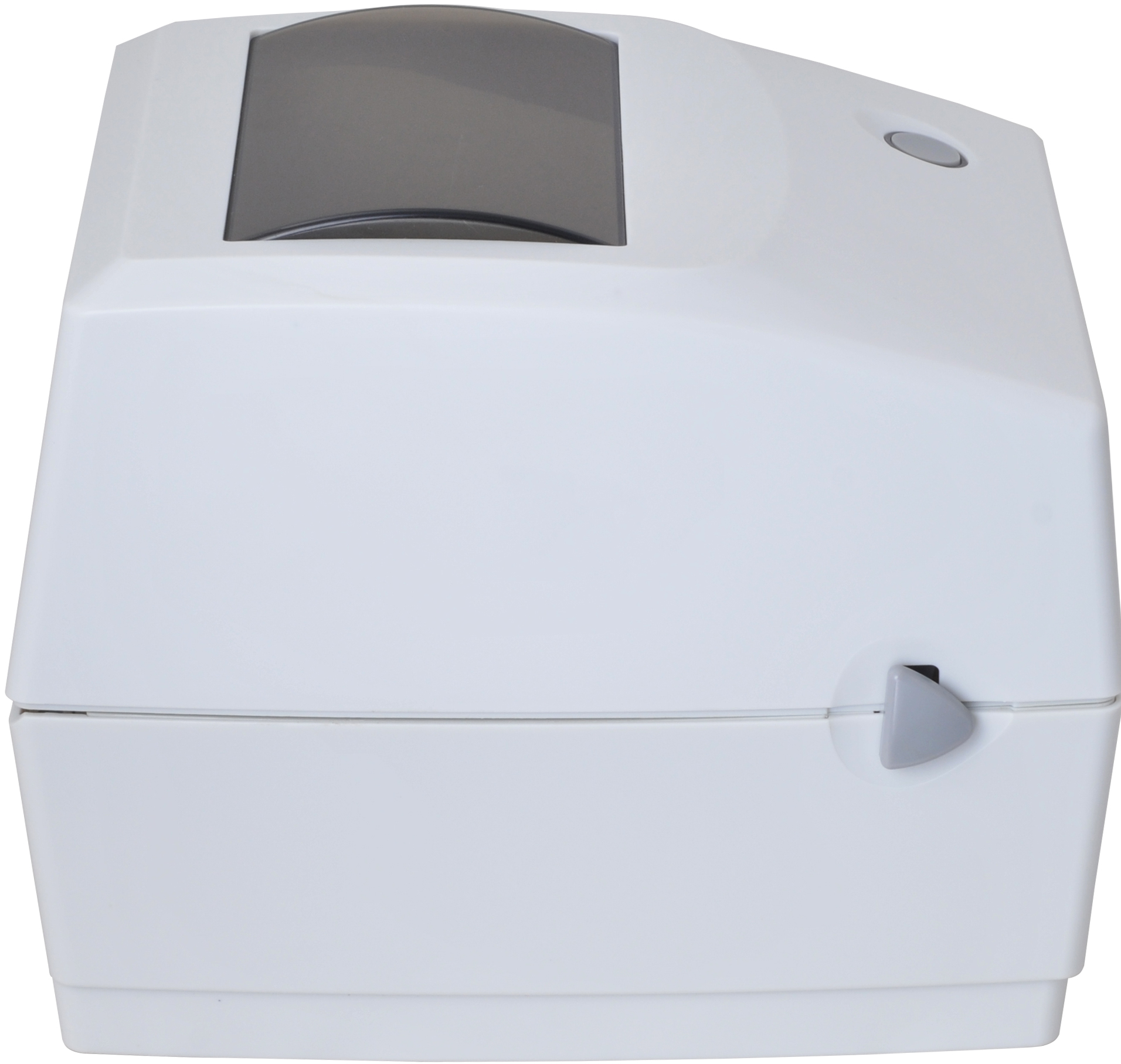

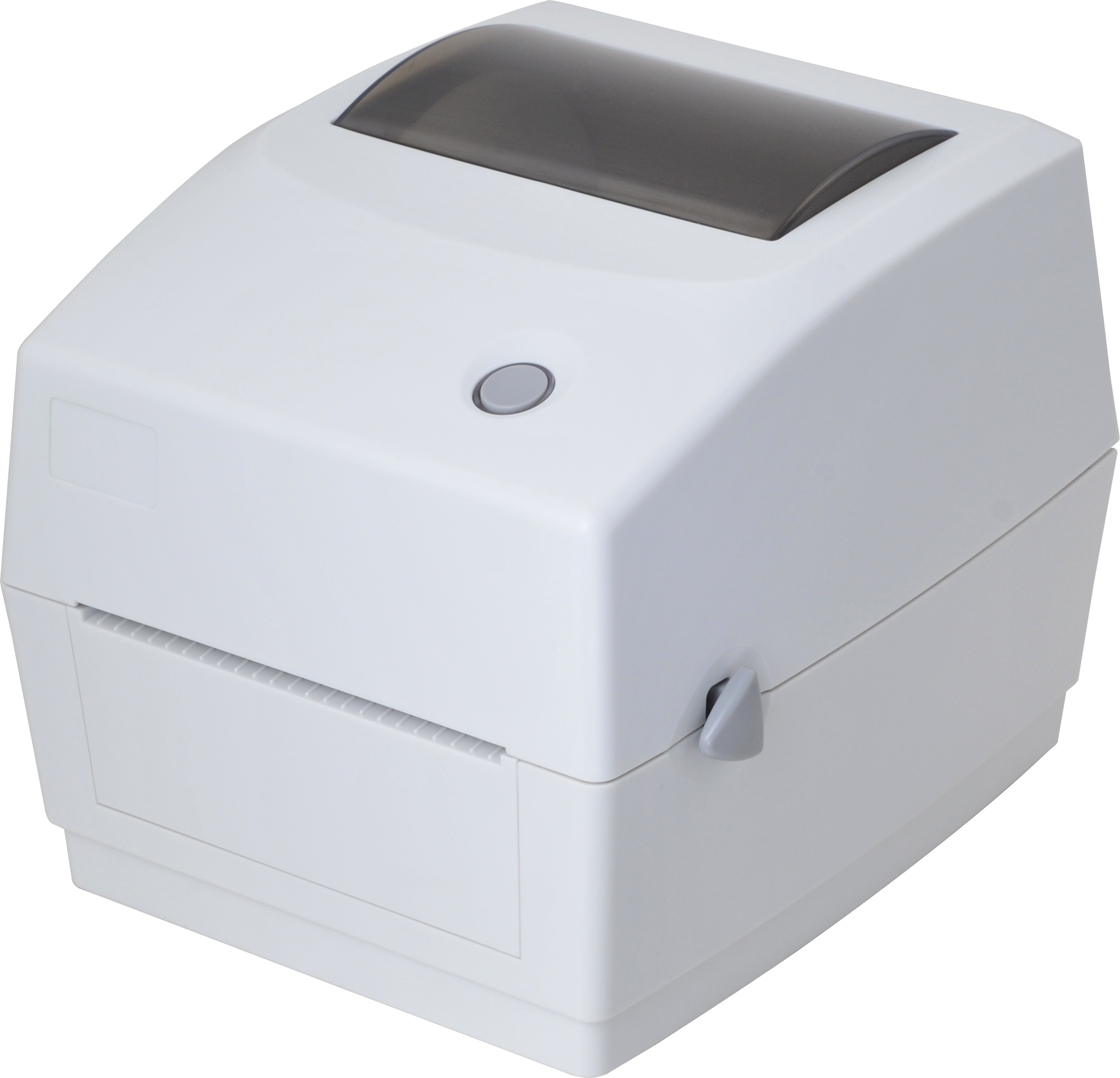

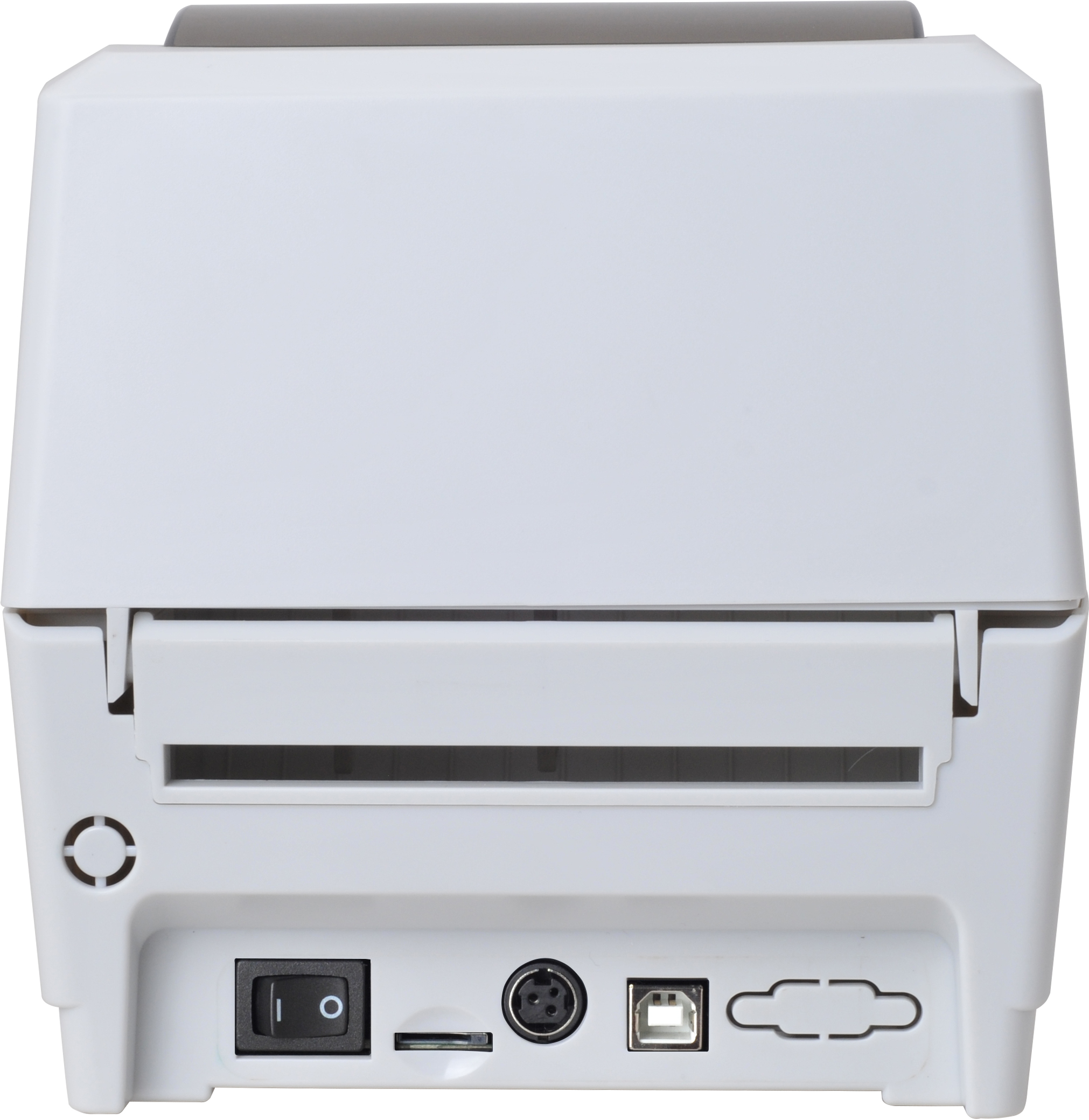

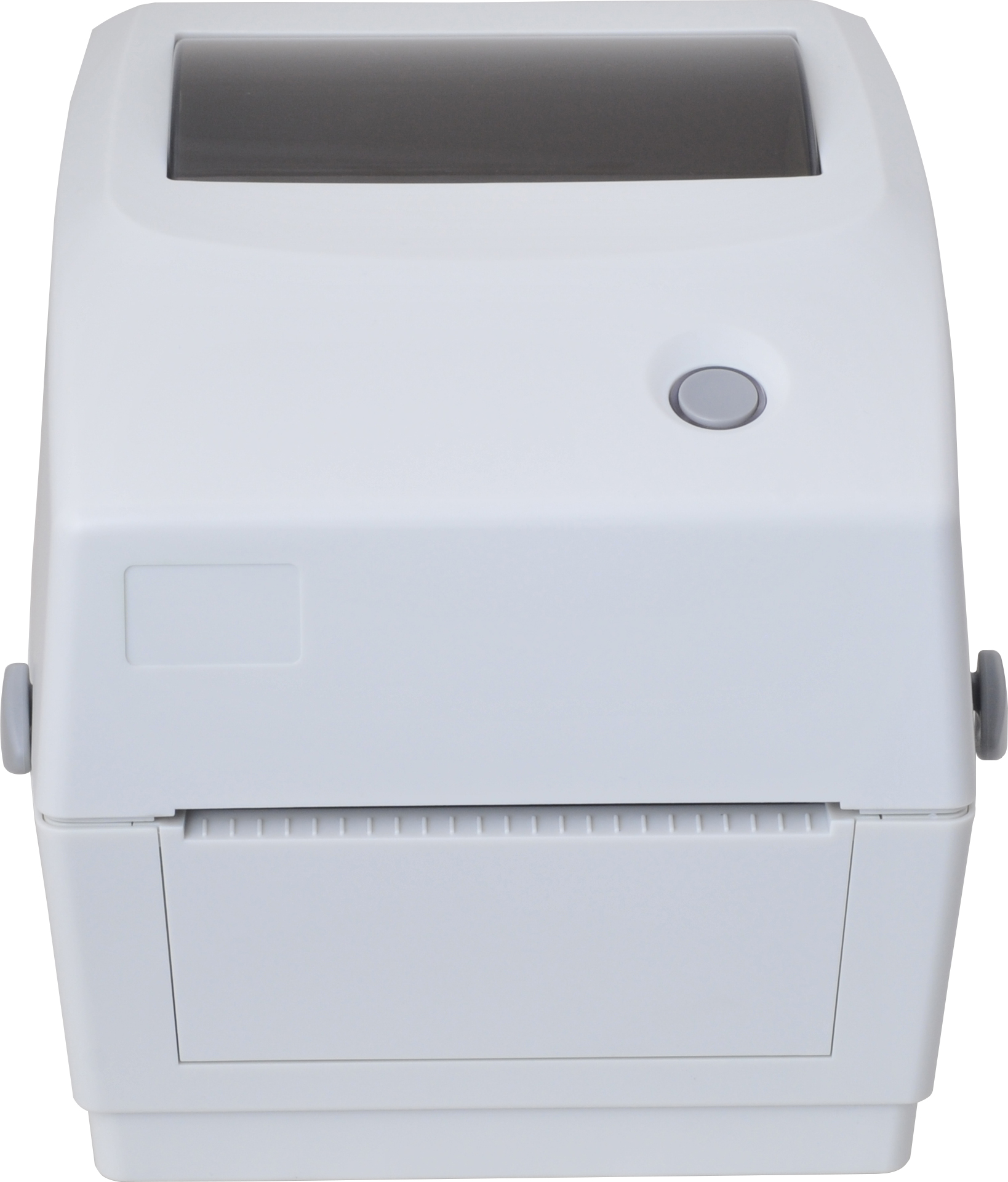

USB Label Barcode Printer for Retail, QR Code, Small Business
Detail
Model: SYLBP-430B
Resolving power: 203DPI
Printing method: Thermal printing
Maximum print speed: 152mm(6")/s
Maximum print width: 108mm(4.25")
Maximum print length: 1778mm
Label Volume Capacity: 101mm (4 ") OD
Media Type: Continuous, gap, black label, folding paper, perforated paper
Media width: 20~116mm(0.78"~4.56")
Medium thickness: 0. 06mm~ 0. 2 mm
Medium core diameter: 25.4~ 76.2 mm
Label length: 10~1778mm(0.39"~70")
Clearance/black mark height: Minimum 2mm
Description
Offset of printout
Vertical: 1mm maximum, horizontal 1mm maximum
Casing: plastic cement
Volume size: 219.03 mm( L) x 189.62 mm( W) x 178.50 mm(H)
Weight: 1.58kg
Central Processing Unit: 32-bit efficient processor
Memory: 8M Flash memory
8MB SDRAM/ MicroSD 4GB
Communication interface: USB 2.0 ( ) . WIFI ( ) . TF Card ( )
Bluetooth (optional)
Input: AC110-240V
Power specifications
Output: DC24V/2.5A
User interface
Standard model power switch, paper output key, LED indicator (3 colors: red, purple, blue)
Sensor: Gap sensor black label sensor
Cover opening sensor: Built in font
Eight Bitmap Font Libraries: Windows font can be downloaded through software
Barcode support
1D bar code: Code 39, Code 93, Code 128UCC, Code 128subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128,UPC-A,UPC-E, EAN and UPC 2( 5) digits add-on, MSI, PLESSEY, POSTNET, China POST
2D bar code: PDF-417, Maxicode, DataMatrix, QR code
Font and barcode rotation
0°、90°、180°、270°
Printer Language:
TSPL、EPL、ZPL、DPL
Environmental conditions
Operating environment: 5~40 ℃ (41~104 ° F), humidity (non condensing) 25~85%
Storage environment: - 40~60 ℃ (- 40~140 ° F), humidity (non condensing) 10~90%
Security certification
FCC,CE,CB,CCC
Accessories
① Windows volume label editing software, driver and operation manual CD; ② Quick installation guide; ③ Power adapter; ④ Power cord; ⑤ USB transmission line;
⑥ Paper reel, paper roll fixing plate x2
Reliability
The printer will arrive 30 km or one year before the printer, and the rubber roller will arrive 30 km or one year before the printer, including serial port, Bluetooth and WFi
Factory selection
Optional for dealers
① External roll holder; ② Paper reel; ③ External support extension plate;
FC CE CB
Applications
Applied to many occasions and scenarios. Such as schools, homes, office and more.
Packing and Delivery
Packaging Detail:
6 pcs/carton
MOQ: 10 cartons
Delivery Detail: within 20days after order confirmed.
Shipping
We generally ship goods worldwide by sea. The products will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and Customs clearance on your side.
Kindly Note
If you need large quatity,please feel free to contact us.We will provide you a competition price and high quality goods.We are professional team for printer comsumable Sincerely hope we can help you.Welcome.
