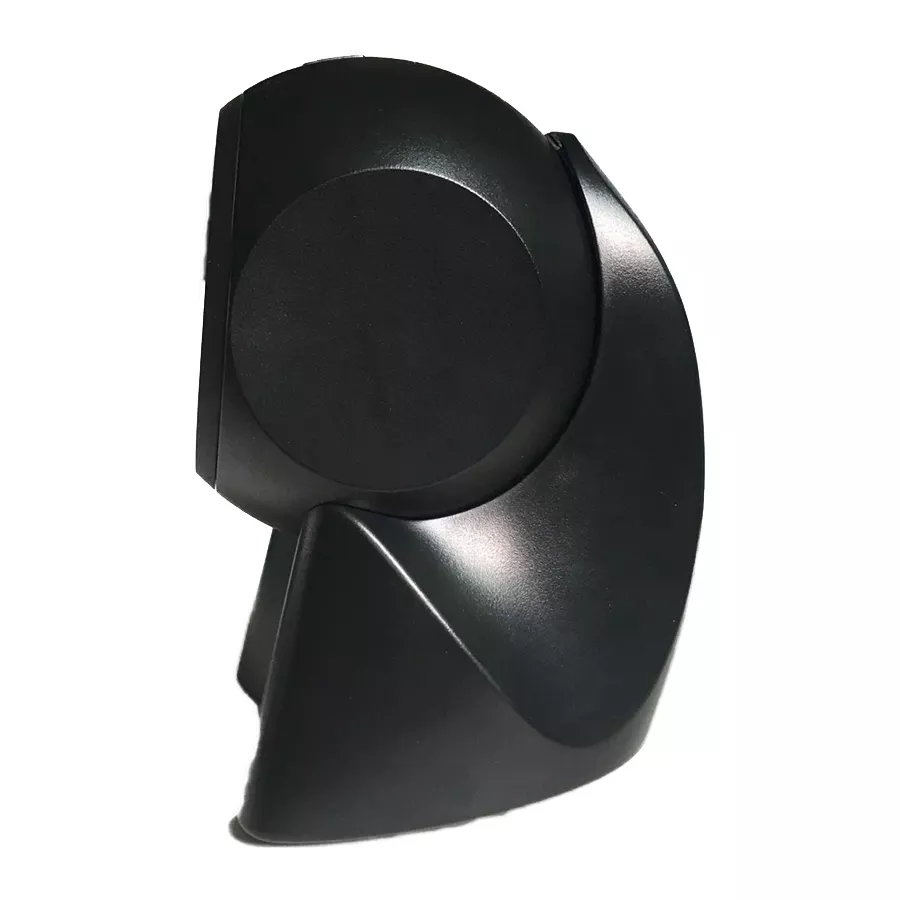

1D Multi-lines Handsfree Barcode Scanner
Product Parameter
Performance Parameters | Picture Sensor | Omni-directional multi-line（5 directions, 4 parallel lines in each direction） | |
Bar code reading speed | 2000 Times/Second±2% | ||
Minimum Contrast Recognition | Reflectance difference：32% | ||
Bit Error Rate | 1/50,000 | ||
Scanning Angle | Horizontal : 72° Vertical：82° Rotated:360° | ||
Capacity | EAN-8、EAN-13、EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、 UPC-A、UPC-E、Code 39、Code93、Code 128、Codabar、Interleaved 2 of 5 | ||
System Compability | Linux，Android，Mac,Windows XP、7、8、 10 | ||
Depth of Field | EAN13 5mil | 1CM-9CM | |
EAN13 8mil | 1CM-13CM | ||
EAN13 11mil | 1CM-27CM | ||
EAN13 14mil | 1CM-29CM | ||
EAN13 28mil | 2CM-32CM | ||
Lamp-house Type | Wavelength ：Red laser is 650nm ± 3nm | ||
Scan Pattern | Automatic induction continuous scan | ||
Keyboard support | American, German, French, Japanese, Italian, Belgian, Dutch | ||
Secondary development | support | ||
Barcode output editing | Can delete the bar code before and after the data (max 4 bar code) | ||
Human- computer interaction | Indicator light | Red&Blue LED，Red light mains tips, blue light decoding success tips | |
Buzzer | Start Tips，decoding success tips | ||
Button | Wake button | ||
Environment Parameters | Drop | Design to withstand1.5 M drops to concrete5 times | |
Environmental Sealing | Sealed design,can effectively prevent dust and water from entering | ||
Working Temperature | 0-40℃/-20-60℃ | ||
Working Humidity | 5-95% Non-Condensed | ||
Environment Light | 4860LUX ±12 LUX | ||
Physical Parameters | Net Weight | 474g | |
Packing Weight | 819g | ||
Data line length | 180CM(±3CM) | ||
Host Size(L*W*H) | 115mm*110mm*152mm | ||
Packing Size(L*W*H) | 132mm*165mm*245mm | ||
Communication | Keyboard port、USB、Serial port | ||
Working voltage | +5VDC±0.25V | ||
Working current | 189MA | ||
Standby current | 150MA | ||
Laser grade standard | National secondary laser safety standard | ||
Electromagnetic compatibility | CE & FCC DOC compliance | ||
Applications
Applied to many occasions and scenarios. Such as schools, homes, office and more.
Packing and Delivery
Packaging Detail:
12 pcs/carton
Delivery Detail: within 20days after order confirmed.
Shipping
We generally ship goods worldwide by sea. The products will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and Customs clearance on your side.
Kindly Note
If you need large quatity,please feel free to contact us.We will provide you a competition price and high quality goods.We are professional team for printer comsumable Sincerely hope we can help you.Welcome.
