Cheap Price China 48mm Handheld Portable Bluetooth Printer

Short Description:

Mode: SYTP-M21



Product Detail

Product Tags

Detail

Printing Method: Thermal Line

Effective Printing Width: 48mm

Point Density: 384 dots/line

Printing Speed: 80mm/s

Interface Type: Mini USB、Bluetooth

Printer Pater  Paper Width: 0.5 mm 57.5, Outside Diameter: max  Φ  40 mm

Line Spacing: 4 mm

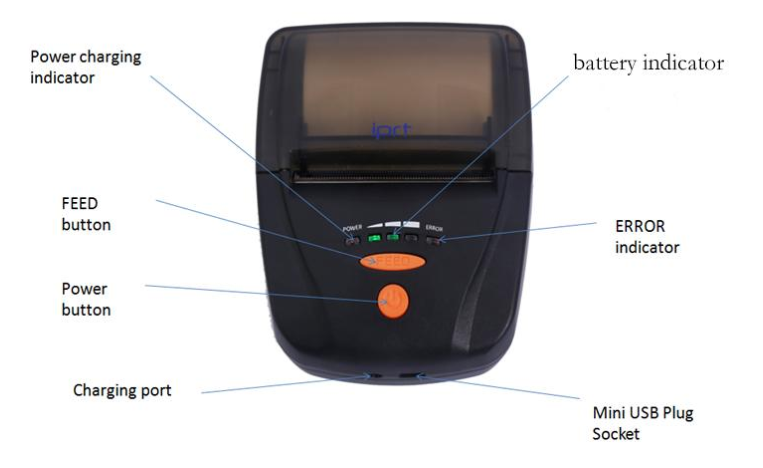

● Paper Loading Method: drop-in easy loading

● Black Mark Location: available

● Paper End Detection: when paper is out, the ERROR Indicator will constant on lighting.

Meanwhile, the buzzer will ringing.

● Printing Control Command: ESC/POS compatible command set

(refer to<M21 Printer Developer Manual >).

● Power Supply: 2200mAh rechargeable polymer lithium battery.

● Low Power Alarm: when the battery is low, the power indicator blinks with red color; if the voltage

is lower than 6.2V , the printer will turn off power.

● Sleeping: the printer will fall after at least 5 seconds without usage into sleep, and can be awaken

by pressing 【FEED】 button or sending data to it.

● Battery Charging: quick charging, it will be fully charged about 1-3 hours;

● Battery Duration: under 25% printing density, at least 250 meters; the standby time is over

7days. (These parameters are just for reference. Long term usage will cause

the capacity decline, and can not ensure the time of printing.)

Notice

1.Don’t make the printer printing receipt longer than 1m, it might damage the printer.

2.Water or other liquid should not be spilled into the printer, also the printer should not be appeared in the rain, or else may cause printer damage.

3.Please do not open the paper case cover when it is printing, otherwise the printer may work improperly. If printer is using USB connection to work, should not unplug the USB cable, or else some printing data may be lost.

4.When printer is using USB connection to work, the distance of communication should be within 10 meters, otherwise the printer doesn’t print or prints rubbish codes. Too high(45℃)or too low(5℃) environment temperature and too high (85%) or too low (20%) environment humidity both effect the printing quality.

5.The printer paper roll with poor quality or stored for too long time also may reduce the printing quality even damage the printer. Under the black mark detecting mode, the printer requires that the pre-printed black mark is accordant with the printing rule of black mark (please refer to details in Chapter 4.2), otherwise the black mark can not be detected correctly.

6.Be sure to use up the power of the battery before charge up it, as it can ensure the using life of the battery.

Applications

Applied to many occasions and scenarios. Such as schools, homes, office and more.

Packing and Delivery

Packaging Detail:

20 pcs/carton

Delivery Detail: within 20days after order confirmed.

Shipping

We generally ship goods worldwide by sea. The products will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and Customs clearance on your side.

Kindly Note

If you need large quatity,please feel free to contact us.We will provide you a competition price and high quality goods.We are professional team for printer comsumable Sincerely hope we can help you.Welcome.
