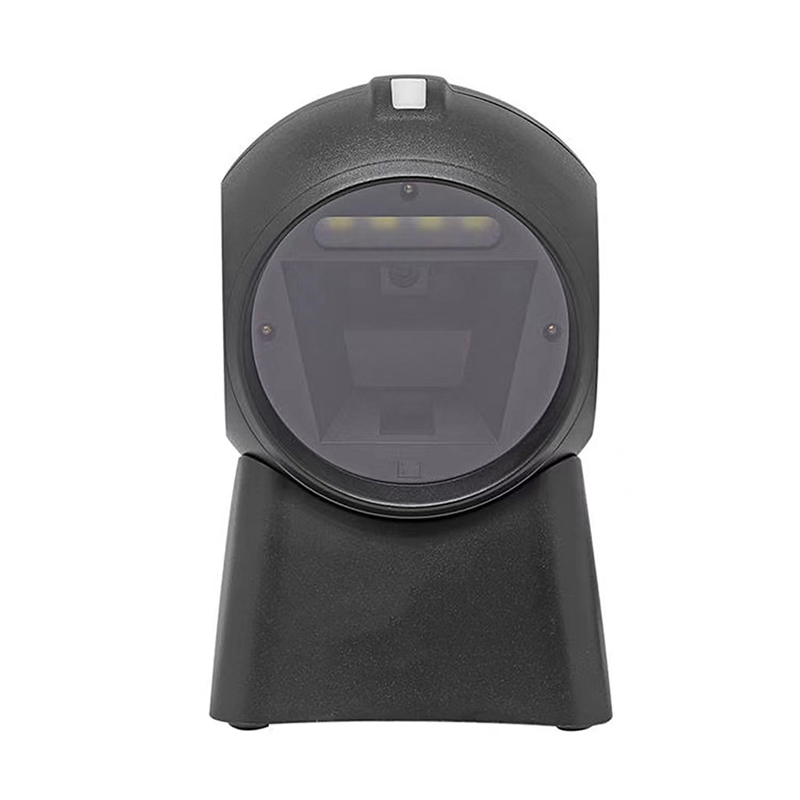

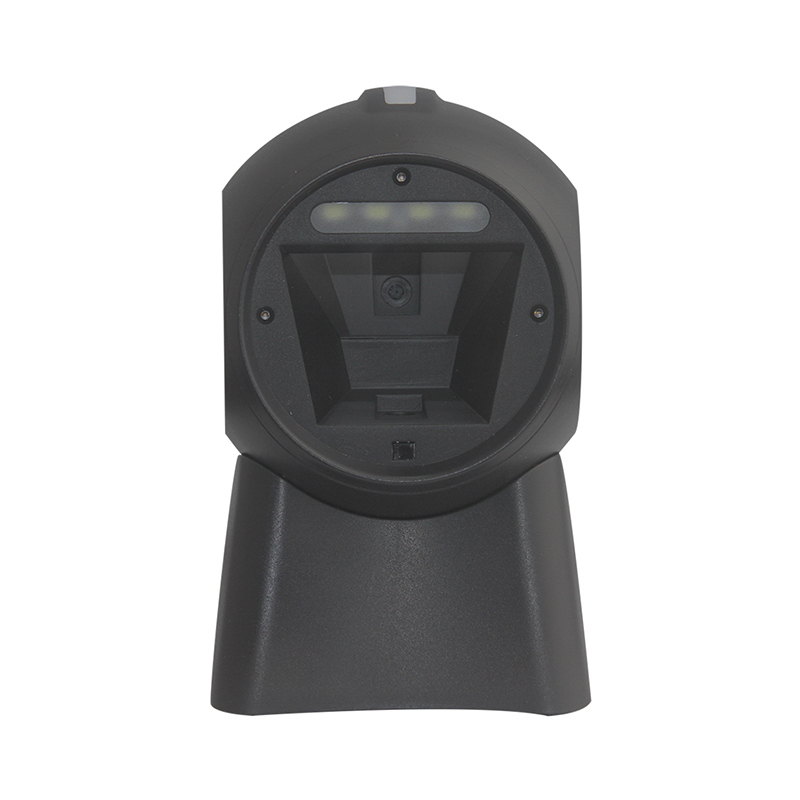

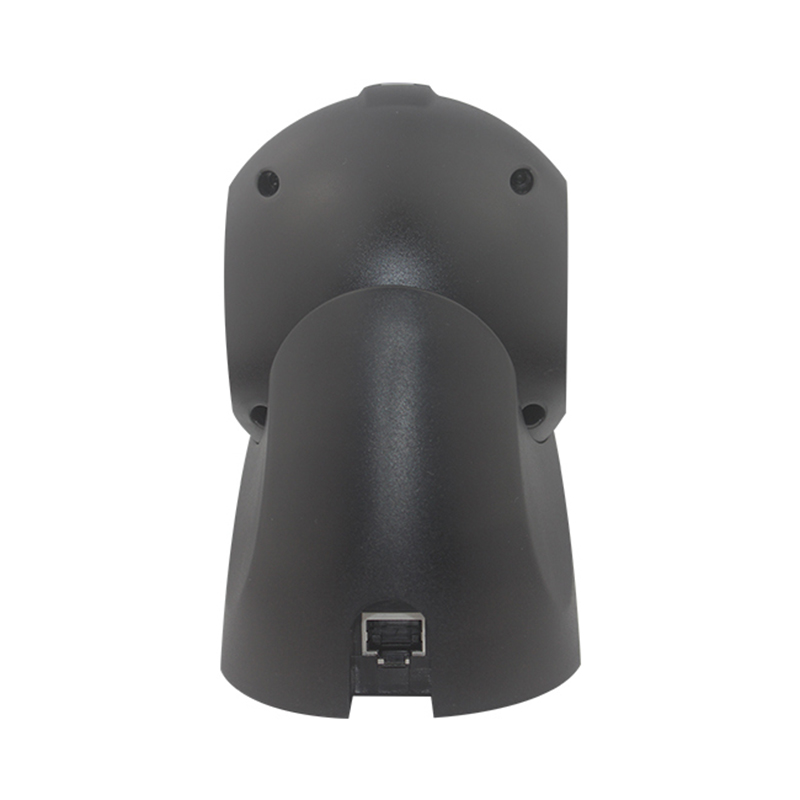

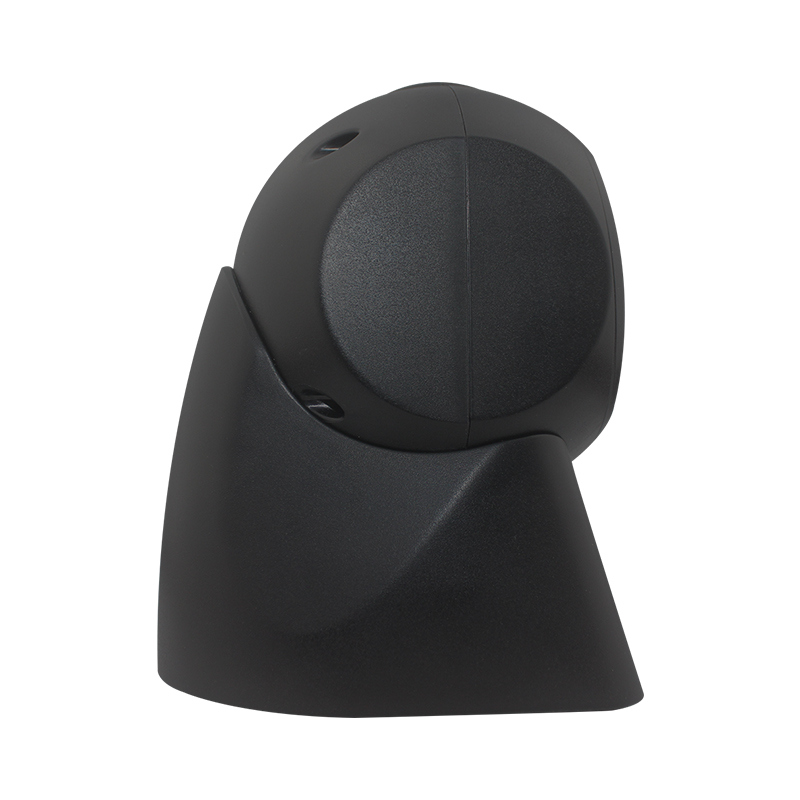

Handhold Bar Code Scanner With High Speed Receiver For Store, Supermarket, Warehouse
Features
● High performance 32 bit hardware decoding
● 20 scanning lines five directions
● Support various types of suffix settings
● Multiple/single line scanning capability
● Scan window supports adjustment angle
Specification
General |
|
Model | SYBS-T103 |
Color | Black |
Interface | KBW,RS232,USB |
Stand | Fixed install stand |
Power supply | 5.0 VDC+/-10% |
Rated current | 275mA |
Power consumption | 2W |
Antiknock characteristic | To withstand from 1.2 meters high drop. |
Laser Class | CDRH Class IIa; IEC 60825-1: Class I |
Performance |
|
Scanning mode | Omni directional 20 line, 5 directions,20 scan lines |
Scanning speed | 1500 times per second |
Scanning Angle | 0~360 degree(Omni-directional) |
Scanning deviation | +/-50 degree |
Light resistance | indoor lighting, Sunlight, fluorescence, incandescent light, mercury vapor light, sodium vapor light: 450 Ft Candles(4844 Lux) ,daylight: 8000Ft Candles(86111 Lux) |
Scanning depth of filed | 0~216mm@ 13mil(100%UPC/EAN) |
Light Source | 650 nm visible diode laser |
Printing contrast | Minimum 25% reflection difference |
Lowest resolution | 5mil |
Rated operating range | 5 mil: (38%) 10~64mm 7.8 mil: (60%) 0~152mm 10.4mil: (80%) 0~190mm 13mil: (100%) 0~216mm |
Decoding ability | UPC/EAN/JAN, UCC/EAN 128, Code128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code bar, MSI etc |
Physical |
|
Weight | Gross:600g |
20 in 1 carton | 690*420*255mm/12kg |
Environment |
|
Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
About This Item
Auto Sensor: Thanks to auto sensing function, you can completely rest your hand. Just place the barcode you want to scan in the scanning area to ensure that the laser completely covers the barcode.
Durable & Ergonomic: Durable, Drop-Resistant & Ergonomic: Made to last day in and day out with high quality ABS plastic for shock-proof ruggedness. Your hand will love the ergonomic grip, and it even comes with a bonus, freestanding stand for no-hands scanning, no assembly required!
Plug & Play: Just plug the USB cable into your computer, then your computer will automatically install the USB driver within 2-5 seconds and start scanning instantly! The perfect scanner for supermarkets, pharmacies, bakeries, bookstores, clothing stores, corner stores, pop-up shops and more!
Widely Compatibility: This handheld scanner is compatible with Windows, Mac and Linux. It also syncs with programs such as Quick books, Word, Excel, Novell and other common software. It also supports editing features such as inserting, separating, filtering, and case conversion.
