80mm label barcode high speed thermal receipt printer
Detail
Printing:
Printing method: Direct thermal
Resolution: 203DPI
Print width: 80mm
Printing speed:
MAX: 127mm/s MIN: 50.8mm/s
Memory DRAM: 4M FLASH: 4M
Print head temperature sensor: Thermal sensitive resistance
Paper exists detection: Photosensor
Interface: USB
Character size: 1.5×3.0mm,
traditional Chinese:3.0×3.0mm, 24×24 dots
Image: Monochromatic PCX, BMP image files can be load to FLASH, DRAM
Media type:
Paper type: Paper roll, sticker, adhesive sticker, etc
Paper width: 20mm~82mm
Roll external:
Diameter: MAX 100mm
Roll inner diameter: MIN 25mm
Paper off type: Peel off
Power
Power supply input: 24VDC, 2.5A
Physical characteristics
Weight: 1.42KG
Dimensions: 212.4(D) x 143(W) x 145.5(H)mm
Description

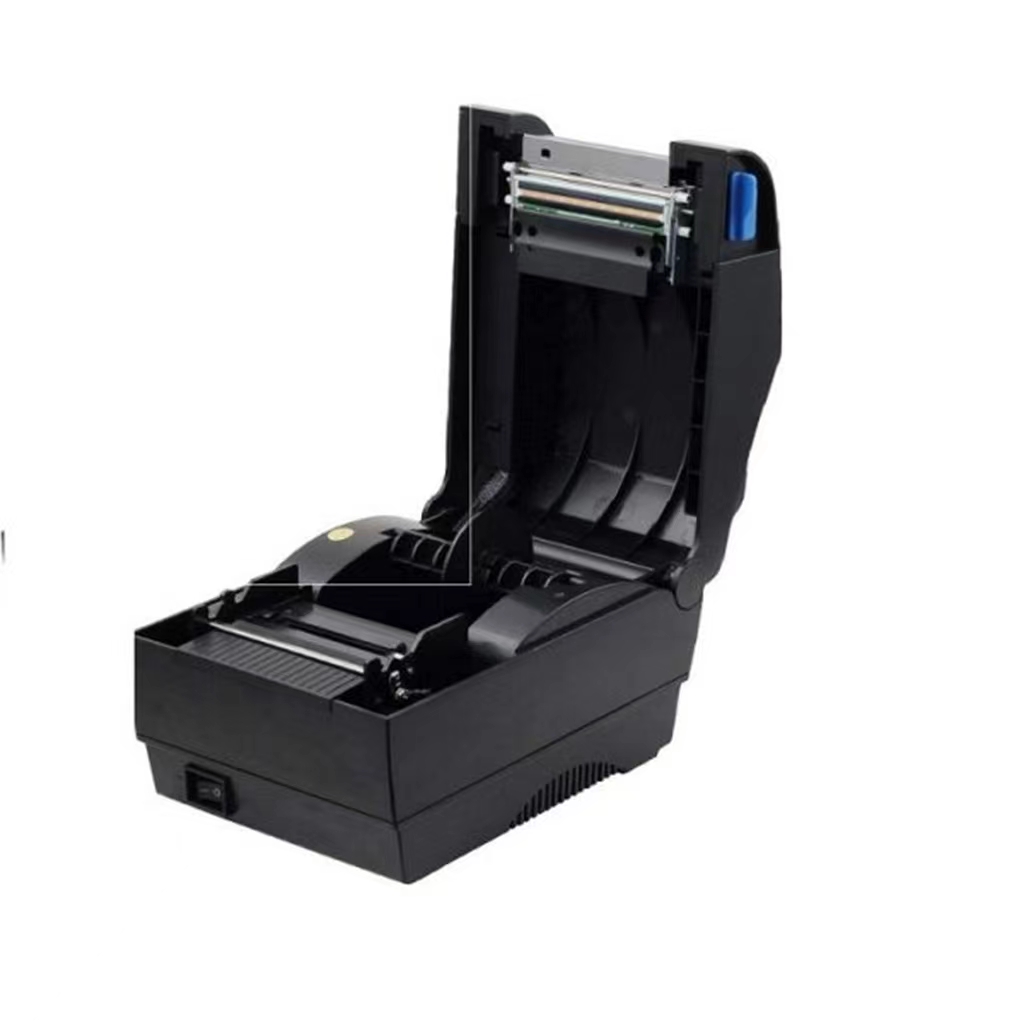

The Printer SYTP-330B is the 3 inch direct thermal label printer, the printing speed can up to 152mm/sec. Designed with no losable parts and user-friendly clamshell that allows users to easy open the cover and drop labels into the media bay. Gap auto detection and the black mark sensor is completely adjustable from side to side.
Note:
This item have 2 functions, it can print thermal label paper(20 to 80mm width ) and thermal receit paper(58mm/80mm width).
Our Printer SYTP-330B is suitable for all types of commercial retail Barcode & Labelling systems.

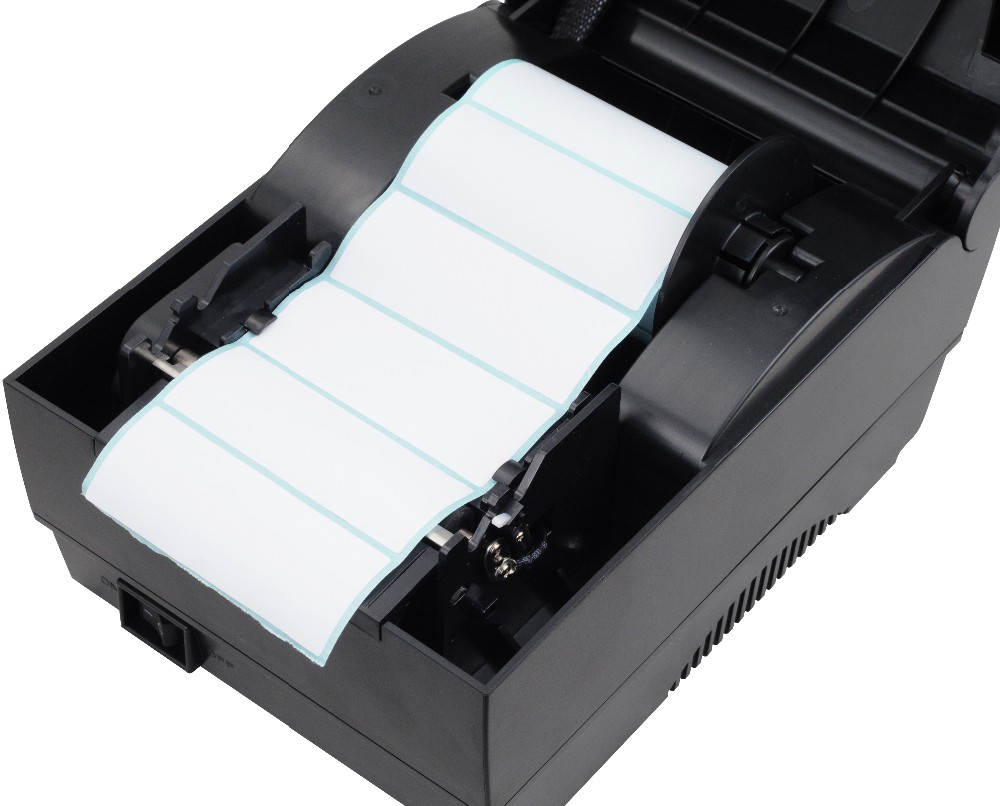

Easy label/paper installation.
Easy maintenance and excellent structure.
Supports PDF417, QR CODE, DATMATRIX
Support label paper auto detection.
Speed: Min 50.8mm/s, Max 127mm/s. Built-in power supply.
Support QR Code printing, Support paper roll, sticker, adhesive sticker, etc.
Applications
Applied to many occasions and scenarios. Such as schools, homes, office and more.
Packing and Delivery
Packaging Detail:
6 pcs/carton
Delivery Detail: within 20days after order confirmed.
Shipping
We generally ship goods worldwide by sea. The products will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and Customs clearance on your side.
